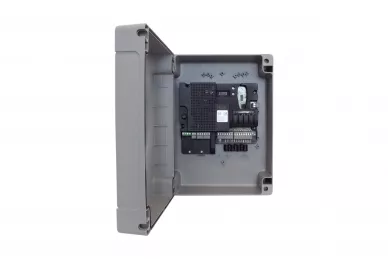

Nice MC800 control unit for 230V gates motors (replaces A60)

221,29 EUR
Manufacturer: Nice
Product code: #18473
In stock. Ships today!
  • to two 24V gearmotor
  • auto programing, works with Oview
  • BLUEBUS intput
Delivery:
Poland VAT: 23.00% change
Shipping cost from:
4,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Nice MC800 Control unit for 230 V gates motors for swing gates

Compatible with 230V actuators:
  • Nice Toona TO4005, TO4006, TO4015, TO4605, TO5015, TO5016, TO5605
  • Nice Hyppo HY7100, HY7005
  • Nice Wingo WG4000, WG4010, WG5000
  • Nice Too TOO3000, TOO4500
  • Nice Metro MFAB3000, MFAB3000L
  • Nice Big Metro LFAB4000
  • and actuators produced by different manufacturers than Nice, also hydraulic
Can be used instead of Nice A60 i A400 control panels, that are end-of-life.

MC800 control panels works both with BLUEBUS (MOFB, EPMB itd.) and relay photocells (BF, FK, EPM itd.). Relay photocells should be connected to AUX1 - AUX3 inputs (PHOTO, PHOTO1 and PHOTO2). The control panel supports also PHOTOTEST function.

MC800 control unit features:
  • simple programming, works with Oview programmer
  • simple programming, a friendly two-level programming method of 8 first level functions (ON-OFF) and 8 parametric functions
  • gentle start and release at closing
  • function of partial opening of the gate - wicket
  • controlling the operation of two 230V actuators
  • semi-automatic, automatic operation
  • auto programming during the first programming the control panel automatically determines and memorises the end positions of the gate
  • service of an electric lock
BUILT-IN INPUTS and OUTPUTS:
  • two motor outputs (M1, M2),
  • Output to 230V / 21W flashing light
  • electro-lock output (12VAC / 15VA),
  • gate status indicator output,
  • STOP input acting as NC, NO or 8.2 kΩ,
  • standard set of control inputs (Step by Step, Open, Close)
  • BlueBUS output
  • AUX1 to AUX4 inputs for limit switches or relay photocells
PARAMETERS
  • power supply of the control panel: 230V AC
  • rated power consumed from the 900W grid
  • flashing lamp output: 120 / 230V, 21W
  • degree of protection: IP54
  • working temperature -20 ° C ... + 50 ° C
  • dimensions: 310x232x122mm
  • Weight: 4.1 kg
